0.27mm Wire Vapor Liquid Filter Knitted Wire Mesh Acid Resistant

Place of Origin ANPING, CHINA
Brand Name JIUFU
Certification ISO
Model Number JF-10012
Minimum Order Quantity 50kg
Price negotiation
Packaging Details Plastic Film + Woven Bag + Wooden Box or Pallet
Delivery Time 7-20 days
Payment Terms T/T, Western Union
Supply Ability 10000 kgs per Day
Product Details
Product Name Vapor-Liquid Filter Material Stainless Steel
Forms Standard Woven Style Single Wire
Wire Diameter 0.27mm Level Shanghai Q/YSZZ-88-91
Width Range 100mm Wire Shape Round
Feature Acid-Resistant Application Gas-liquid Separator
High Light

0.27mm Knitted Wire Mesh

,

Knitted Wire Mesh Acid Resistant

,

0.27mm filter steel mesh

Leave a Message
Product Description

0.27mm Wire Vapor Liquid Filter Knitted Wire Mesh Acid Resistant





Stainless Steel Vapor-Liquid Filter Features:



Steel that is resistant to weak corrosive media such as air, steam, and water, and chemically corrosive media such as acid, alkali, and salt, also known as stainless acid-resistant steel.



In practical applications, the steel that is resistant to weak corrosive media is often called stainless steel, and the steel that is resistant to chemical media corrosion is called acid-resistant steel. Due to the difference in chemical composition between the two, the former is not necessarily resistant to chemical media corrosion, while the latter is generally stainless.


The corrosion resistance of stainless steel depends on the alloying elements contained in the steel. Chromium is the basic element for stainless steel to obtain corrosion resistance. When the content of chromium in steel reaches about 12%, chromium and oxygen in corrosive medium act to form a thin oxide film (self-passivation film) on the surface of steel. , which can prevent further corrosion of the steel matrix. In addition to chromium, the commonly used alloying elements are nickel, molybdenum, titanium, niobium, copper, nitrogen, etc., to meet the requirements of various uses for the structure and properties of stainless steel.


Stainless steel vapor-liquid filters generally require acid-resistant steel.



Commonly used stainless steel vapor-liquid filter material properties

0Cr19Ni9 304 As the most widely used stainless heat-resistant steel, food equipment, general chemical equipment.
00Cr19Ni11 304L Steel with lower carbon content than 0Cr19Ni9 has superior resistance to intergranular corrosion.
0Cr23Ni13 309S Corrosion resistance and heat resistance are better than 0Cr19Ni9
0Cr25Ni20 310S The oxidation resistance is better than 0Cr23Ni13. In fact, it is mostly used as heat-resistant steel
0Cr17Ni12Mo2 316 In seawater and various other media, the corrosion resistance is better than 0Cr19Ni9. Mainly used as pitting resistant material
0Cr18Ni12Mo2Ti 316Ti Used for equipment resistant to sulfuric acid, phosphoric acid, formic acid and acetic acid, with good resistance to intergranular corrosion
00Cr17Ni14Mo2 316L It is an ultra-low carbon steel of 0Cr17Ni12Mo2, which has better resistance to intergranular corrosion than 0Cr17Ni12Mo2
0Cr18Ni11Ti 321 Adding Ti improves the resistance to intergranular corrosion.
1Cr18Ni11Si4A1Ti   (NS-80) Parts and equipment for making high temperature concentrated nitric acid medium
00Cr20Ni25Mo4.5Cu 904L 00Cr20Ni25Mo4.5Cu steel is mainly developed to solve the corrosion of sulfuric acid. At the same time, it is also resistant to corrosion of acetic acid at any concentration and any temperature under normal pressure. It also has good corrosion resistance in formic acid, phosphoric acid, and mixed acid of formic acid and acetic acid.

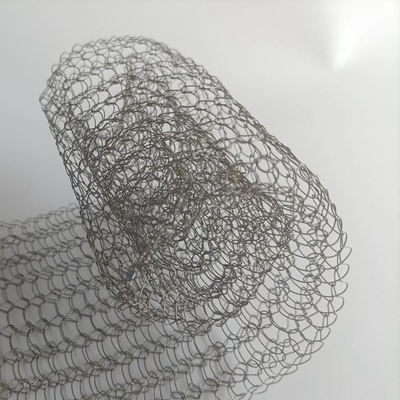

0.27mm Wire Vapor Liquid Filter Knitted Wire Mesh Acid Resistant 0

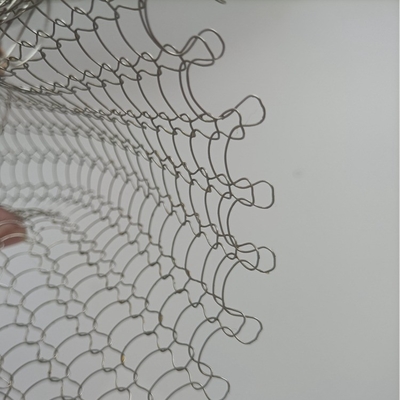

0.27mm Wire Vapor Liquid Filter Knitted Wire Mesh Acid Resistant 1



0.27mm Wire Vapor Liquid Filter Knitted Wire Mesh Acid Resistant 2
