200-500 Type 5x7mm SUS304 Knitted Wire Mesh High Efficiency Rate
| Place of Origin | ANPING, CHINA |
|---|---|
| Brand Name | JIUFU |
| Certification | ISO |
| Model Number | JF-10004 |
| Minimum Order Quantity | 50kg |
| Price | negotiation |
| Packaging Details | Plastic Film + Woven Bag + Wooden Box or Pallet |
| Delivery Time | 7-20 days |
| Payment Terms | T/T, Western Union |
| Supply Ability | 10000 kgs per Day |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Knitted Wire Mesh | Material | SUS304 |
|---|---|---|---|
| Standard Forms | High Efficiency | Woven Style | Single Wire |
| Wire Diameter | 0.2mm | Opening Size | 5x7mm |
| Width Range | 40mm-1000mm | Wire Shape | Round |
| Usage | Oil-gas Sfilter | Application | Mesh Demister |
| High Light | SUS304 Knitted Wire Mesh 500 Type,High Efficiency 5x7mm Knitted Wire Mesh,SUS304 knitted metal mesh JF-10004 |
||
Product Description

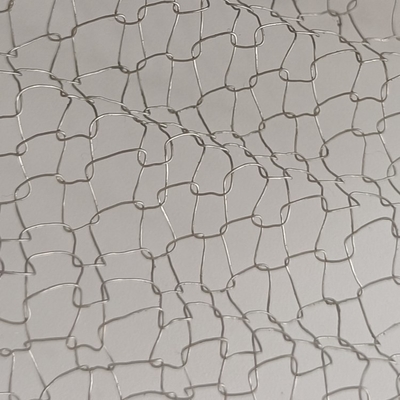

200-500 Type 5x7mm SUS304 Knitted Wire Mesh High Efficiency Rate
DP Knitted Wire Mesh Details
The high-efficiency knitted wire mesh is a wire mesh woven by hook knitting.

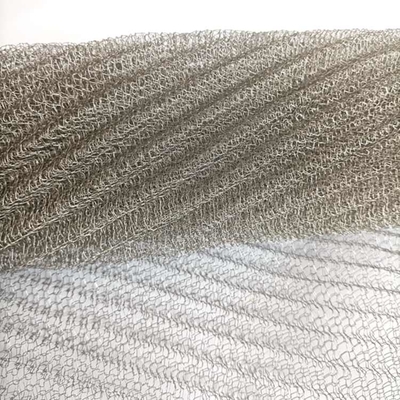

The diameter of the stainless steel wire usually used is between φ0.12mm and φ0.30mm, and the width of the net is: 100mm, 150mm, 300mm, 400mm, 500mm , 520mm, 560mm; the size of the mesh is: 2*4mm, 4*5mm, 7*mm, and the woven mesh is pressed with 20~45 degree oblique angle 5~7mm deep corrugation.
Common specifications: 60-100 type, 80-150 type, 200-400 type, 200-500 type
Model representation: For example, 200-400 type represents a high-efficiency knitted wire mesh with 200 mesh holes on a 400mm mesh width.
Product material: stainless steel wire: 304, 304L, 316, 316L, molybdenum, titanium, Monel, etc.
Applications:
It is used in the chemical industry to make wire mesh demisters, wire mesh demisters, catalysts and the elimination or capture of mist droplets and liquid foam entrained in the gas during distillation, evaporation, absorption and other processes;
It is used for oil and gas separation, oil-water separation, gas-liquid separation, shock absorption and noise reduction, sealing components, etc. in the manufacturing process of mechanical equipment
| High Efficiency DP knitted wire mesh technical parameters: | ||||||
| wire diameter dw(㎜) |
mesh width allows (㎜) |
bulk density ρ(㎏m3) |
specific surface area α(㎡/m3) |
void ratio ε |
||
| flat wire | round wire | ±20 | 182 | flat wire | round wire | 0.977 |
| 0.1×0.28 | 0.19 | 626 | 484 | |||
| 32 layers of wire mesh per 100mm thick mesh pad | ||||||
