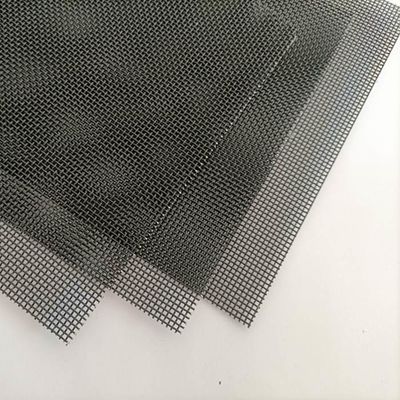

BWG SWG Wire SUS201 SUS304 Stainless Steel Woven Mesh Weft Warp Weaving
| Place of Origin | ANPING, CHINA |
|---|---|
| Brand Name | JIUFU |
| Certification | ISO |
| Model Number | JF-10023 |
| Minimum Order Quantity | 10 Square Meter |
| Price | negotiation |
| Packaging Details | Plastic Film + Water-proof Paper + Woven Bag + Wooden Box or Pallet |
| Delivery Time | 7-20 days |
| Payment Terms | T/T, Western Union |
| Supply Ability | 10000 Square Meter per Day |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Stainless Steel Wire Mesh | Weave Type | Plain Twill |
|---|---|---|---|
| Material | SUS 201 304 316 321 | Wire Diameter | BWG 0.1mm - 8.6mm |
| Mesh Count | 1-600 Mesh | Wire Type | SWG 0.025 Mm - 8.23mm |
| Application | Test Sieves | Mesh Type | Weft Warp |
| Technique | Woven Mesh | Edge Finish | Flash Edge |
| High Light | SWG Wire Stainless Steel Woven Mesh,SUS201 Stainless Steel Woven Mesh,BWG 304 stainless steel wire mesh |
||
Product Description

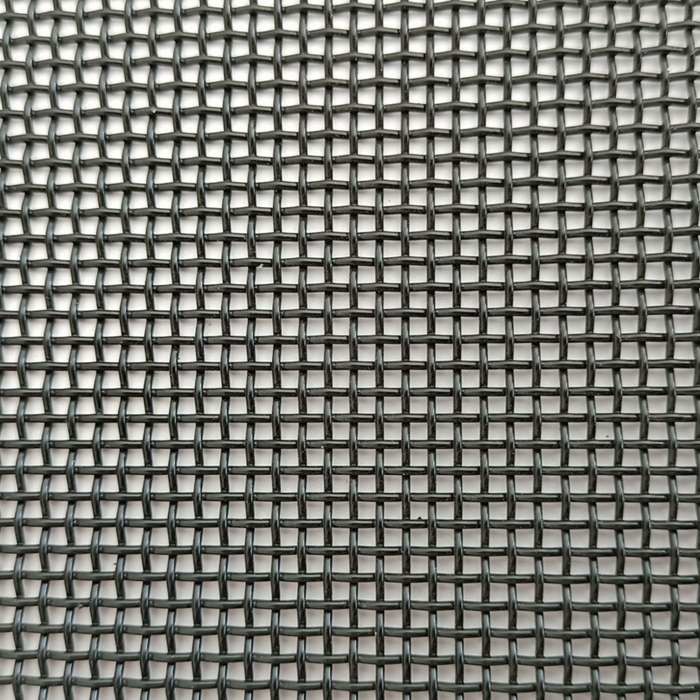

BWG SWG Wire SUS201 SUS304 Stainless Steel Woven Mesh Weft Warp Weaving
Wire Name of Stainless Steel Wire Mesh
warp wire/line wire -- in length direction
cross wire/weft wire/shute wire -- in width direction
Usually, we have a common name for stainless steel wire diameter. For example, the wire diameter of 0.18mm, we call it 18 wires.
Stainless Steel Wire Mesh Wire Number Comparison Table
| NO. |
SWG (MM ) |
BWG (MM ) |
Inch | NO. |
SWG (MM) |
BWG (MM) |
Inch | NO. |
SWG (MM ) |
BWG (MM ) |
Inch |
| 0 | 8.230 | 8.636 | 0.340 | 17 | 1.422 | 1.473 | 0.058 | 34 | 0.234 | 0.178 | 0.007 |
| 1 | 7.620 | 7.620 | 0.300 | 18 | 1.219 | 1.245 | 0.049 | 35 | 0.213 | 0.127 | 0.005 |
| 2 | 7.010 | 7.214 | 0.284 | 19 | 1.016 | 1.067 | 0.042 | 36 | 0.193 | 0.102 | 0.004 |
| 3 | 6.401 | 6.579 | 0.259 | 20 | 0.914 | 0.889 | 0.035 | 37 | 0.173 | * | 0.0068 |
| 4 | 5.893 | 6.045 | 0.238 | 21 | 0.813 | 0.813 | 0.032 | 38 | 0.152 | * | 0.0060 |
| 5 | 5.385 | 5.588 | 0.220 | 22 | 0.711 | 0.711 | 0.028 | 39 | 0.132 | * | 0.0052 |
| 6 | 4.877 | 5.156 | 0.203 | 23 | 0.610 | 0.635 | 0.025 | 40 | 0.122 | * | 0.0048 |
| 7 | 4.470 | 4.572 | 0.180 | 24 | 0.559 | 0.559 | 0.022 | 41 | 0.112 | * | 0.0044 |
| 8 | 4.064 | 4.191 | 0.165 | 25 | 0.508 | 0.508 | 0.020 | 42 | 0.102 | * | 0.0040 |
| 9 | 3.658 | 3.759 | 0.148 | 26 | 0.457 | 0.457 | 0.018 | 43 | 0.091 | * | 0.0036 |
| 10 | 3.251 | 3.404 | 0.134 | 27 | 0.417 | 0.406 | 0.016 | 44 | 0.081 | * | 0.0032 |
| 11 | 2.946 | 3.048 | 0.120 | 28 | 0.376 | 0.356 | 0.014 | 45 | 0.071 | * | 0.0028 |
| 12 | 2.642 | 2.769 | 0.109 | 29 | 0.345 | 0.330 | 0.013 | 46 | 0.061 | * | 0.0024 |
| 13 | 2.337 | 2.413 | 0.095 | 30 | 0.315 | 0.305 | 0.012 | 47 | 0.051 | * | 0.0020 |
| 14 | 2.032 | 2.108 | 0.083 | 31 | 0.295 | 0.254 | 0.010 | 48 | 0.041 | * | 0.0016 |
| 15 | 1.829 | 1.829 | 0.072 | 32 | 0.274 | 0.229 | 0.009 | 49 | 0.031 | * | 0.0012 |
| 16 | 1.626 | 1.651 | 0.065 | 33 | 0.254 | 0.203 | 0.008 | 50 | 0.025 | * | 0.0010 |
Stainless Steel Wire Mesh Piece Packing
Company Introduction and Service
Anping Jiufu Metal Wire Mesh Co., Ltd. is located in Anping County Hebei filter material center No.66, covers an area of 1500 square meters.
The company's main products are stainless steel series products, including stainless steel wire mesh, stainless steel window screen, diamond mesh, stainless steel filter mesh, stainless steel decorative mesh, stainless steel punching mesh and so on.
