8 Microns - 20000 Microns Stainless Steel Test Sieves

Place of Origin ANPING, CHINA
Brand Name JIUFU
Certification ISO
Model Number JF-3001
Minimum Order Quantity 1 pc
Price negotiation
Packaging Details Carton + Wooden Box / Pallets
Delivery Time 7-20 days
Payment Terms T/T, Western Union, MoneyGram
Supply Ability 10000 pcs per day
Product Details
Product Name Laboratory Test Sieve Technique Machine Sieves, Handmake Sieves
Frame Material Stainless Steel, Iron, Brass Mesh Material Stainless Steel, Brass
Mesh Type Woven, Crimped, Perforated Hole Shape Square, Round, Triangular, Etc
Aperture Size 8 Microns - 20000 Microns Mesh Count 1 Mesh - 400 Mesh
Wire Diameter 0.01mm-2mm Application Filters, Sieving
High Light

20000 Microns Stainless Steel Test Sieves

,

8 Microns Stainless Steel Test Sieves

,

20000 Microns lab test sieves

Leave a Message
Product Description

8 Microns - 20000 Microns Stainless Steel Test Sieves





Test Sieve Introduction



Test Sieve, also known as: standard sieve, sample sieve, experimental sieve, inspection sieve, analytical sieve, particle size sieve, analyzer.



The test sieve is a tool for particle size classification and particle size detection of material particles. It is a sieve that is inspected, authenticated, and deemed to be in compliance with the contract by a designated agency. This is an important sign that it is different from ordinary sieves.



The test sieve has strict mesh size regulations. The test sieve uses the mesh size to indicate the specifications of each sieve. The sieve number is equivalent to "mesh" but not equal to "mesh".



Test Sieve Specification



Shape Basic Size Effective diameter of screen surface Height
Max. Min.

round

round

round

square

75mm

200mm

300mm

300mm

75mm

200mm

300mm

300mm

65mm

185mm

185mm

275mm

25mm

25mm,50mm

75mm

75mm



Test Sieve Aperture Size


125mm-1mm size generally chooses metal perforated mesh

3000um-20um size generally uses woven wire mesh

500um-5um size generally chooses welded mesh

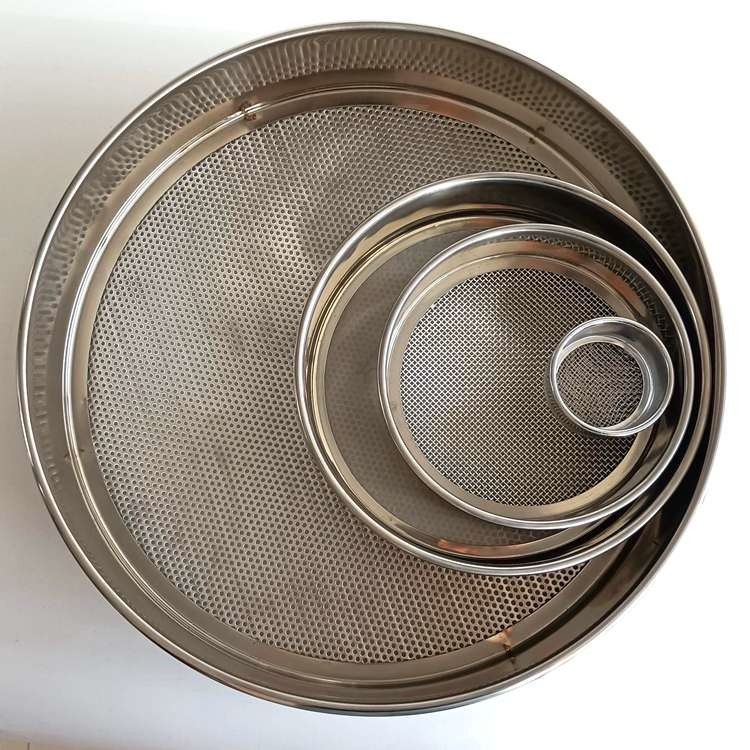

Handmade Test Sieve -- Single Layer Frame



8 Microns - 20000 Microns Stainless Steel Test Sieves 0

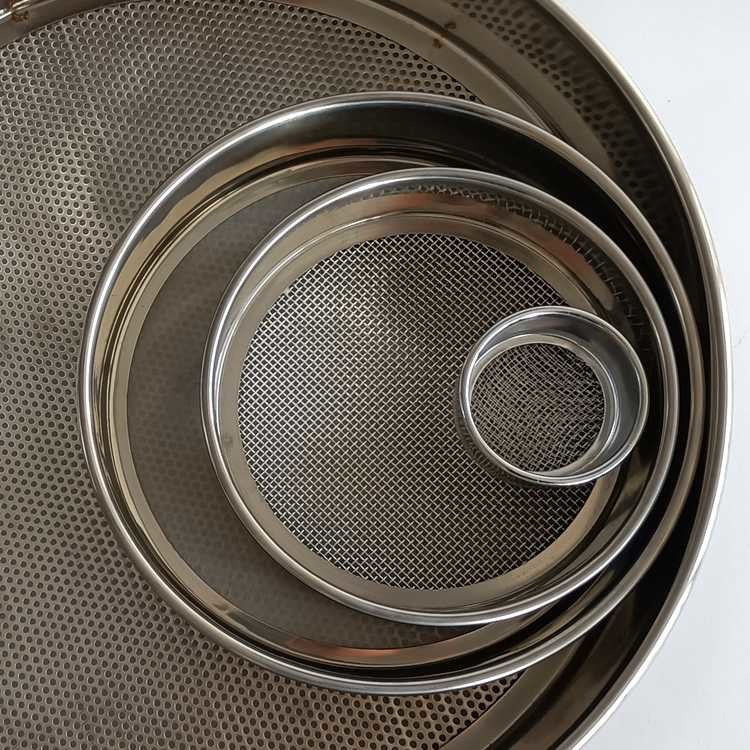

Machine Test Sieve -- Double Layer Frame



8 Microns - 20000 Microns Stainless Steel Test Sieves 1
